MULTI BANK CHARGERS

Battery distributors, warehouses, fleet operators, EV's, RV's, Marine

Not series, or parallel charging. Multi Bank chargers are independent
isolated circuits that charge multiple batteries individually.
Never any over or undercharging. Each circuit has it's own LED to monitor

progress. Simply the best way to charge groups of batteries even if
operated in a series or parallel configuration.

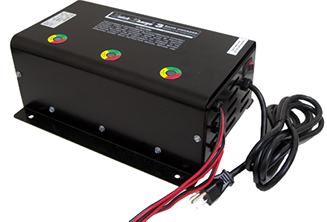

MB Models

(2) - (3) - (4) 12 volt 10 amp circuits

      (6) 12 volt 10 amp circuits               (12) 12 volt 10 amp circuits

These chargers can be mounted on board equipment, or  mounted on a shelf or wall. No need for factory programming, each circuit is  user programmable via internal dip switch to charge deep cycle wet cells, starting wet cells, gels, AGM's, and lithium Ion. Each circuit is current limited, and polarity protected. As an example, they can be connected to each battery of an electric vehicle, and since each battery is charged independent of the other, battery life can increase by at least 25% over a conventional series charger. In another example, you could attach multiple modules to one or more batteries to increase the charge rate in 10 amp multiples.

Because of it's modular construction, and non-sealed enclosure, modules can easily be replaced in the field. Unlike other sealed multi bank brands, no need to shut the whole charger down and ship it back for repair.

6 ft AC and DC leads.  Leads can be customized
    Warranty is 3 years.      Made in U.S.A.

All models available in230v 50 Hz.  Models MBXU

PDF Operating Instructions
